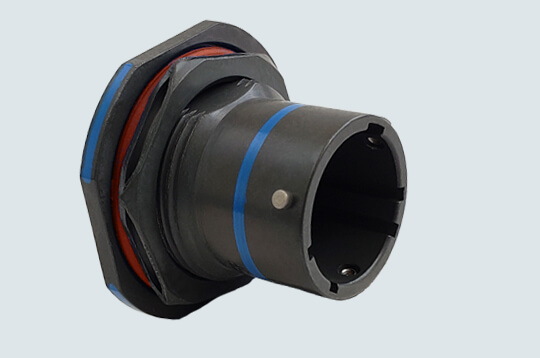

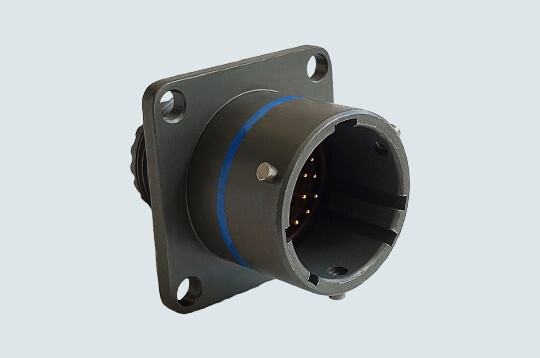

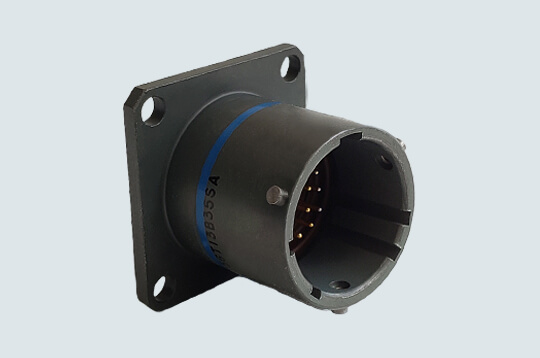

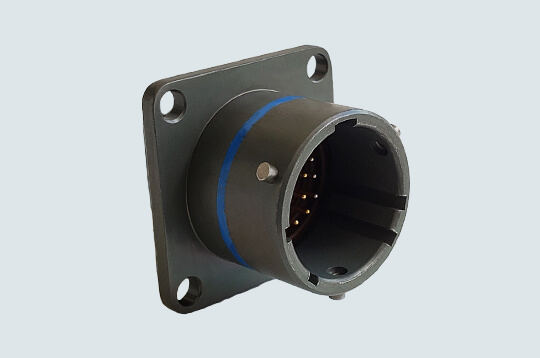

Corsair Electrical Connectors MIL-DTL-38999 Series I

Brandex is an authorized distributor for Corsair Electrical Connectors MIL-DTL 38999 Series I. This series was designed for aviation instrumentation applications where space is limited. The 38999 spec. describes four series of miniature, high density, bayonet, threaded, or breech coupling, circular, environment resistant, electrical connectors using removable crimp or fixed solder contacts, and are capable of operation within a temperature range of -65 to +200 °C. The connectors are intended for use as follows: (i) Series I connectors are used where a quick disconnect coupling system is required for blind mating or other mating problem areas, and these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem (SWAMP) areas with proper connector accessories.

Design Characteristics

• Small to medium sized, environmentally resistant connector.
• 100% Scoop proof design to prevent contacts from being damaged.
• Fast positive coupling by three point bayonet system
• Five key/keyway design eliminates accidental mis-mating
• Contacts are qualified to SAE AS39029 requirements
• Grommets constructed of a tear resistant elastomer

---

Part Number Prefix

---

---

---

---

---
