Corsair Electrical Connectors MIL-DTL-5015 Series III
Corsair Electrical Connectors MIL-DTL-5015 Series III
Part Numbers: MS3450 thru MS3459
Brandex is an authorized for Corsair Electrical Connectors MIL-DTL 5015 Series III. This high power connector series provides environmental protection with rear sealing grommets and pin interfacial seal. With 182 layouts available, 5015 Series III offers configurations for power, signal, or a combination of both. This series is used in a variety of applications from mass transit to aerospace systems and has a wide range of shell styles and finishes.
Design Characteristics
- Medium to heavy weight cylindrical connectors
- Threaded coupling design
- MS345( ) series intermateable with existing MIL-DTL-5015
solder or crimp versions on existing equipment - Large variety of shell styles and shell sizes from 8 thru 48
- Rugged connector design that performs well in harsh environments
- Durability: Minimum of 100 mating cycles
Part Number Prefix

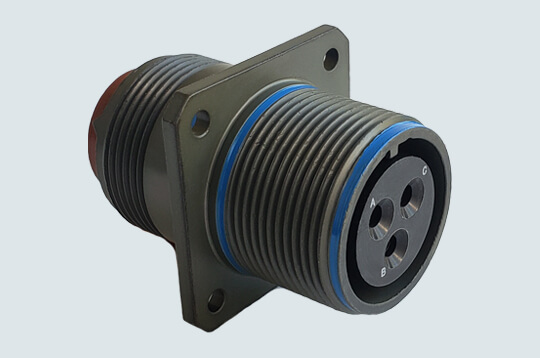

MS3450 - Wall Mount Receptacle
Mates: MS3456 & MS3459
Plating Options:
Nickel, Olive-Drab

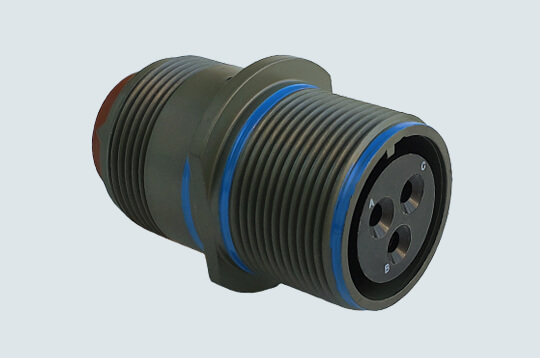

MS3451 - Inline Receptacle
Mates: MS3456 & MS3459
Plating Options:
Nickel, Olive-Drab

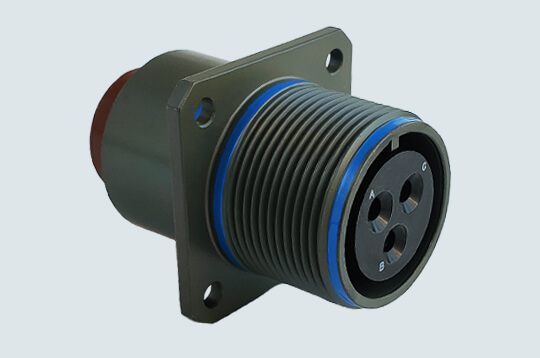

MS3452 - Box Mount Receptacle
Mates: MS3456 & MS3459
Plating Options:
Nickel, Olive-Drab

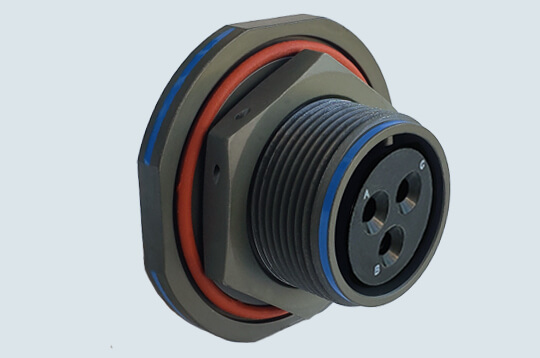

MS3454 - Jamnut Receptacle
Mates: MS3456 & MS3459
Plating Options:
Nickel, Olive-Drab

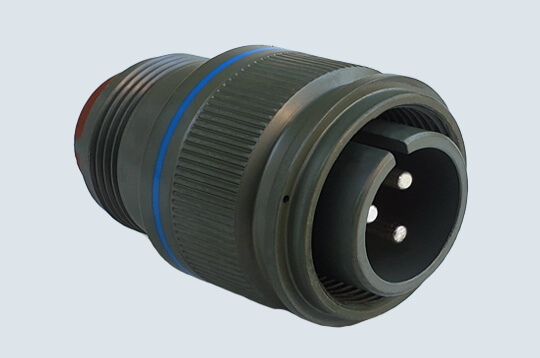

MS3456 - Straight Plug
Mates: MS3450, MS3451, MS3452, MS3454
Plating Options:
Nickel, Olive-Drab

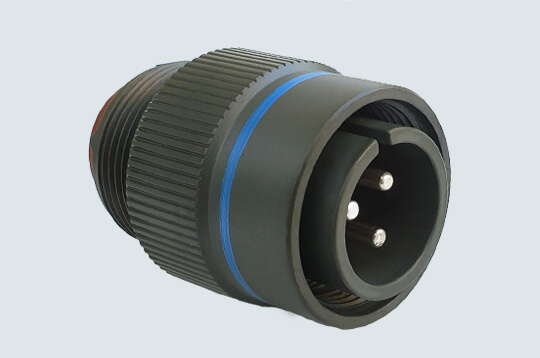

MS3459 - Self-Locking Plug
Mates: MS3450, MS3451, MS3452, MS3454
Plating Options:
Nickel, Olive-Drab
