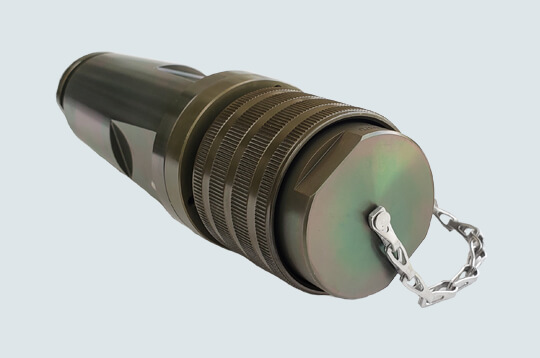

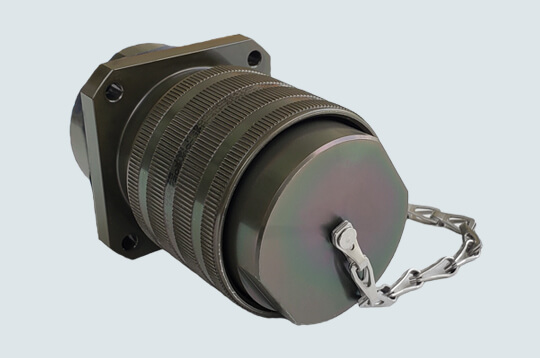

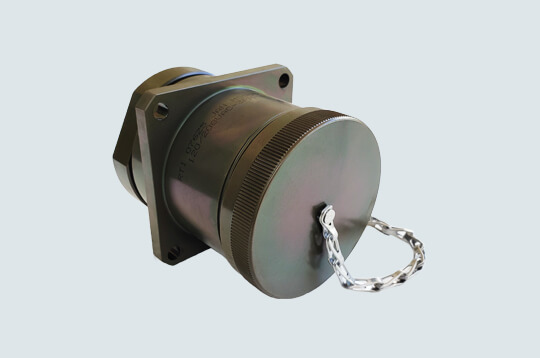

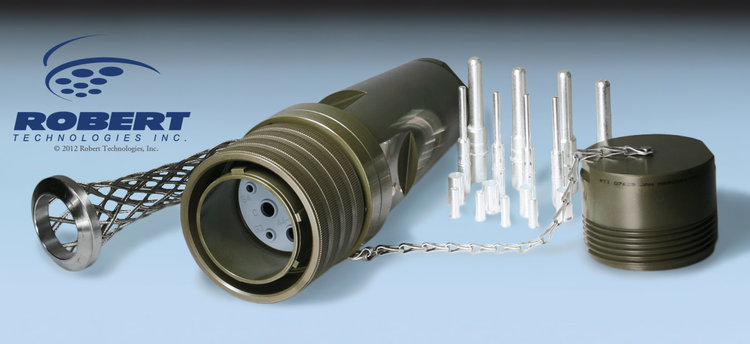

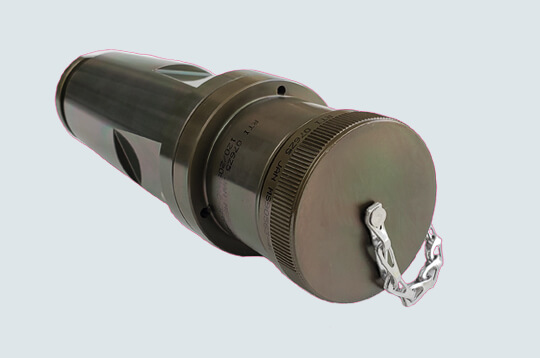

Robert Technologies MIL-DTL-22992 Class L

Brandex Components is an authorized stocking distributor of Robert Technologies MIL-DTL-22992 Class L connectors. This series was designed for heavy-duty, harsh environment applications with large power requirements. Military Class L Connectors are required for all ground power equipment procured by the Department of Defense. The selection of Class L connectors was primarily based on maximum user safety and equipment protection.

Design Characteristics

• Heavy electrical loads: current range from 40 to 200 amperes
• Direct current or single/three phase, 60/400 Hertz alternating current
• Double stub coupling threads for faster connections; no cross threading, easy cleaning
• Shells are machined from high strength aluminum and are supplied with conductive or non-conductive finishes.
• Resistance to the operating environments of heat, moisture, vibration, high impact and immersion

---

Part Number Prefix

---

---

---
