MC Cannon Subminiature Series Connectors
MC Cannon Subminiature Series Connectors
Part Numbers: MC11E8-3PN thru MC23E10-6SN
Brandex manufactures an equivalent to the MC Cannon Subminiature Series. The connectors have solder type contacts retained in polychloroprene insulators. Shells are machined from aluminum, finished in olive drab cadmium plate and feature Acme threads for quick disconnect versatility. Endbells are available in straight or right angle types. These connectors have been designed to withstand moderately severe handling and environmental conditions. Sealing is accomplished by interfacial compression of the resilient insert, which offers a high degree of of vibration resistance.
BX11E8-3SN - Plug w/ Coupling Nut
Contacts:
3 x #20 Socket Contacts

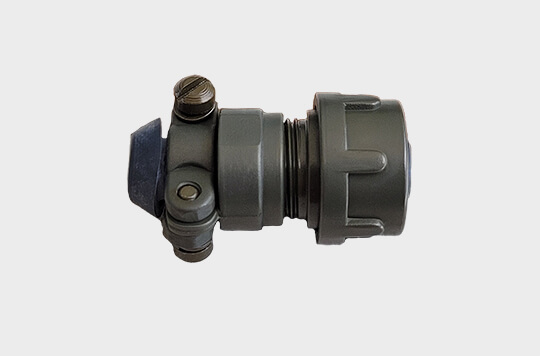

BX11E8-3SX - Plug w/ Coupling Nut
Contacts:
3 x #20 Socket Contacts
BX11E10-6PN - Plug w/ Coupling Nut
Contacts:
6 x #20 Pin Contacts
BX11E10-6PN1 - Plug, Large Coupling Nut
Contacts:
6 x #20 Pin Contacts
BX11E10-6SN - Plug w/ Coupling Nut
Contacts:
6 x #20 Socket Contacts
BX11E10-6SN1 - Plug, Large Coupling Nut
Contacts:
6 x #20 Socket Contacts

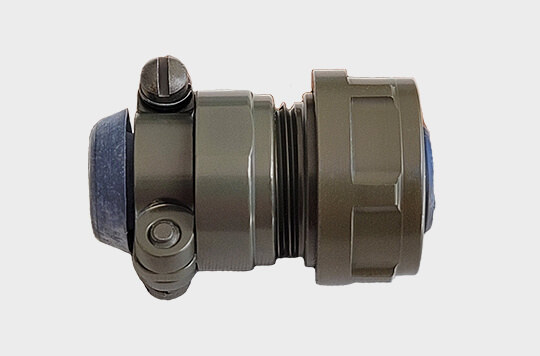

BX11E13-12PN - Plug w/ Coupling Nut
Contacts:
12 x #20 Pin Contacts
BX11E13-12SN - Plug w/ Coupling Nut
Contacts:
12 x #20 Socket Contacts
BX11E13-12SN1 - Plug, Large Coupling Nut
Contacts:
12 x #20 Socket Contacts
BX11E13-12SN1-F117 - Plug, Large Coupling Nut
Contacts:
12 x #20 Socket Contacts
BX12E10-6PN - Cord Plug
Contacts:
6 x #20 Pin Contacts
BX14E10-6PN - Jamnut Receptacle
Contacts:
6 x #20 Pin Contacts
BX14E10-6PW - Jamnut Receptacle
Contacts:
6 x #20 Pin Contacts

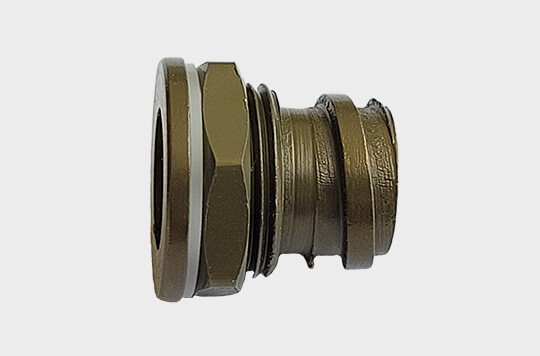

BX14E10-6PX - Jamnut Receptacle
Contacts:
6 x #20 Pin Contacts
BX14E10-6SN - Jamnut Receptacle
Contacts:
6 x #20 Socket Contacts
BX14E13-12PN - Jamnut Receptacle
Contacts:
12 x #20 Pin Contacts
BX23E10-6SN - Plug, Right-Angle
Contacts:
6 x #20 Socket Contacts
