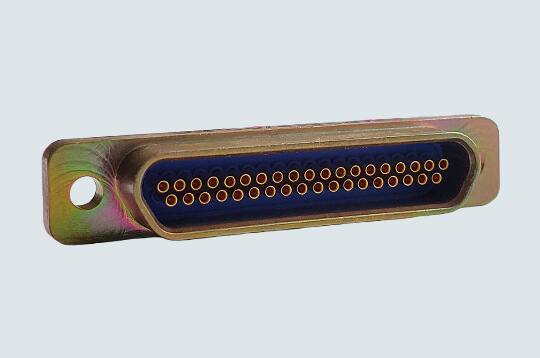

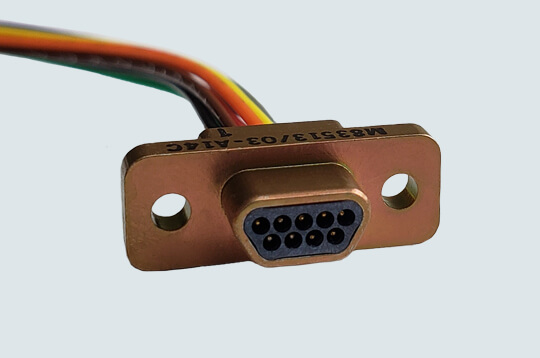

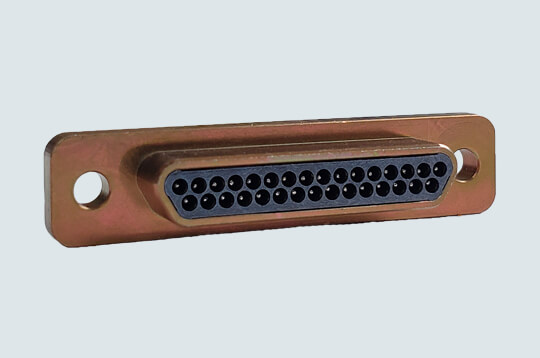

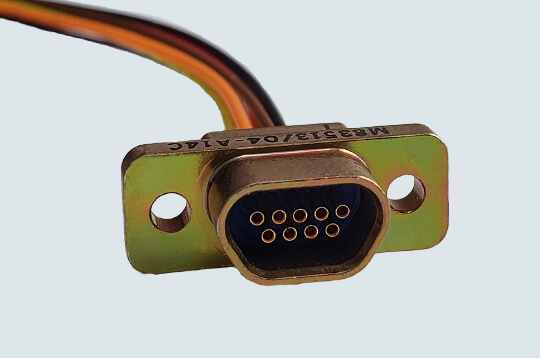

Glenair MIL-DTL-83513 (Micro D)

This series is frequently used in industrial, military equipment and soldier-worn applications that require small, lightweight and reliable connectors with higher density contact configurations. It is available in 8 shell sizes and accommodates anywhere from 9 to 100 contacts.

Design Characteristics

• Small size / high reliability connector
• Light weight with very high density contact configurations
• Accepts wire gauge size: AWG 24 thru AWG 32
• Durability: 500 Mating Cycles
• Available in a variety of contact configurations
  (MIN/MAX): 9, 15, 21, 25, 31, 37, 51, 100
• Contacts are potted with epoxy

---
